EPS & Cement Sandwich Panel Production LineEPS & Cement Sandwich Panel Production Line
Introduction

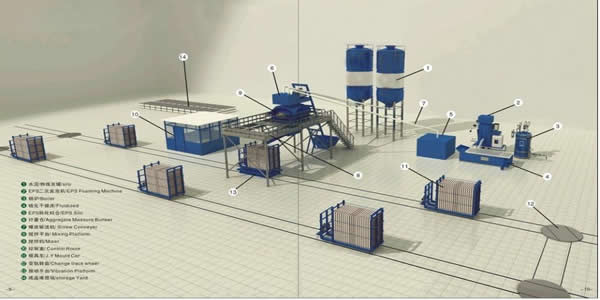

EPS Cement Sandwich Panel is a new kind of light weight energy saving wall material .The equipment for EPS cement sandwich panel production line can solve several problems of traditional technology. With the policy of lower investment but higher profit.This production line includes five systems:batching system,mixing system,slurry-infusing system,moulding system and automatic demoulding system.It can produce EPS cement sandwich solid/hollow panel.
Mould
| Vertical Traction Sandwich Panel Mould Machinery | ||||||
| Name | Main Parameters | |||||
| Overall Dimensions (length x width x height) | 3180 x 1380 x 3580 | |||||
| Weight | 3000KG | |||||
| Mobile Speed (meter/min) | ≤60 | |||||
| Main Components | Host | chassis assembly, former stands, after stands, after plate, rod | ||||
| Accessories | Partition, edge mould, bottom mould | |||||
| Product Information | Thickness(mm) | Width(mm) | Length(mm) | Quantity(pcs/set) | Area(m2/set) | Raw Materials(m3) |
| 60 | 610 | 3000 | 48 | 87.8 | 4.39 | |
| 75 | 610 | 3000 | 42 | 76.9 | 5.00 | |
| 90 | 610 | 3000 | 36 | 65.9 | 5.27 | |
| 120 | 610 | 3000 | 30 | 54.9 | 6.04 | |
| 150 | 610 | 3000 | 24 | 43.9 | 6.15 | |
| 180 | 610 | 3000 | 20 | 36.6 | 6.22 | |
